Zündmodul  für  die  Rotax  912  &  914  Motoren





Plug & Fly CDI ignition box with soft start & start booster
fits  912UL 80hp  -  912ULS 100hp  -  914 turbo  engines
plug compatible with the original Ducati ignition box with 6+6 plugs

Aluminum base plate for cooling and unbreakable mounting

 digital ignition booster with higher ignition voltage and higher ignition energy

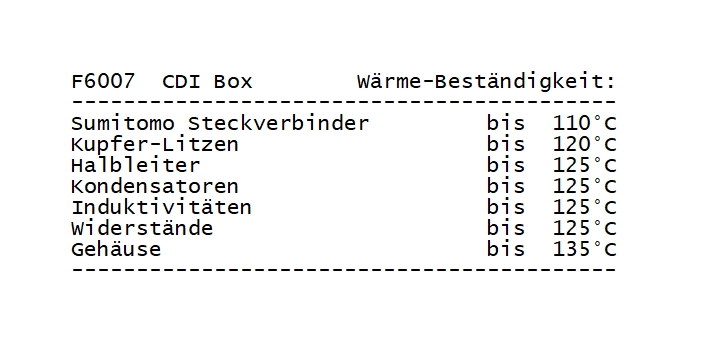

only ignition box on the market in automotive quality from -40°C to 110°C
the original box and those of the competitors must be operated at <80°C, which is a problem under the cowling
brand-new and unrepaired product for direct mounting on the original bracket of the 912 engine
Simple and cheap soft start upgrade without a new ignition rotor.
Handmade im Ruhrpott  von Silent Hektik

F6007   MosFet CDI Softstart Zündbox für die Rotax 912 & 914 UL Motoren mit den 6+6 Anschlüssen  -  497,00€   *excl. tax

The boxes are delivered customized.  A refund is therefore not possible.






CAUTION
We are aware of two different Rotax connection diagrams. The wrong connection will lead to malfunctions and failure of our box.

     CORRECT   Rotax-Anschlussplan aus 05-2010    (c) BRP Rotax     -     grüner Text von Silent Hektik
   WRONG     Rotax-Anschlussplan aus 01-2021    (c) BRP Rotax     -     roter Text von Silent Hektik
Inspection is strongly recommended before installation.


Our ignition box works with the softstart control installed from approx. 05.2010 and the original 250 Ohm pickups.
The plus from the starter motor can be used for the required soft start control connection of our ignition box.

Our soft start circuit will therefore only be activated when the electric starter is really turning.





In principle, all motors can be converted to the 6+6 connections because the electrical function is always the same.
For the new wiring, only use tinned wires with a thickness of 0,75qmm and a temperature resistance of >110°C.

The distance at all pickups (trigger coils) should be 0.3mm to 0.4mm for an optimum ignition function. A check is useful.

When mounting the box, please use washers under the aluminium plate to create an air gap for cooling.



Rotax Zündboxen Teilenummern

Anschluss Drähte zur Box

966 727 ...
966 729 ...
965 444 ...

6 + 6
with Softstart connection
plug & fly

966 726 ...
966 728 ...
965 442 ...

6 + 5
without Softstart connection
only upgrade 1x wire

965 446 ...
965 358 ...
956 359 ...

4 + 5
without Softstart connection
upgrade 6-way connector



M5136 1x fertiges Kabel für Nachrüstung von 6+5 auf 6+6 Zündboxen

 9,70€  netto*

P5138 ein Paar Ersatz Stecker 6+6 mit Pins+Dichtungen

17,00€  netto*

P5310 Ersatz Pickup für die 912 CDI mit Pins+Dichtungen  250 Ohm

67,00€  netto*







Quelle: (c) 08-2023 Luftfahrt Bundesamt Braunschweig  -  www.LBA.de



(c) Silent Hektik 12.2023 for the mechanical solution and the mechanical design
(c) Silent Hektik 12.2023 for the electronic solution and the electronic design



Die Silent Hektik Produkte dienen zur Nachrüstung und wurden durch die jeweiligen Hersteller nicht geprüft.
* Preise excl. aktuelle MehrWertSteuer für Export, Handel und Gewerbe






... und die Power wird mit dir sein !
